Monday, May 09, 2005

Warping

I spent a few days last week in San Diego, with members of the Creative Weavers Guild, and Palomar Weavers. We made dye samples for a sample book, and also painted some warps, skeins, and fiber. This is one of the most useful classes, in my opinion, because everyone goes home with a series of samples, formulas, and a few examples of dyed fiber. Last week, we did about 600 samples, here is a photo of a few from the first day:

samples

At the end of the class, one of the most frequent questions I get is on setting up the warps, after they are dyed. So herewith a brief photo gallery of the process I use. Caveat: It's only the process I use. It's not the only way, perhaps not even the best way, but it is what I do.

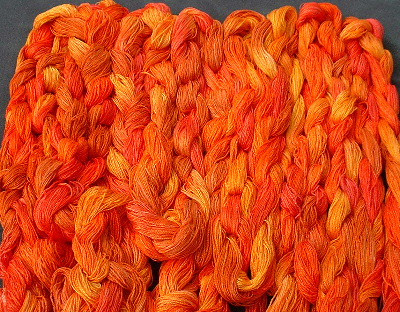

dyed warps2

These are the warps I painted in this post. I'm very happy with the colors on these warps: some of the dye stock was up to two years old, some was from last Fall and the gold was mixed that day. As you can see, there was still plenty of color, despite my thrifty tendency to save dyestock perhaps too long.

I took two of these warps, and added three more warps of solid color cotton yarns, from 2000 ypp to 3000 ypp. I will sett these yarns at 20 epi. The 2 painted warps totaled 204 ends, so I needed another 156 ends for the width I wanted: 18" (360 ends total). I ran 3 small warps to accomplish this: some copper and gold outline stripes, and some reds.

warps1

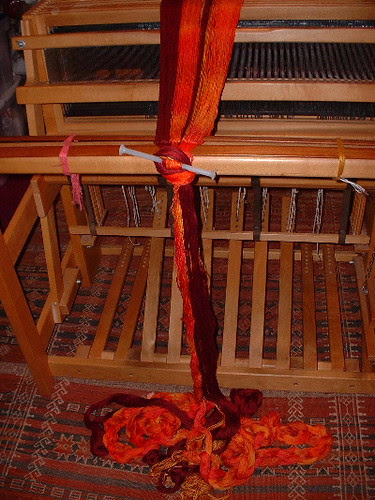

I slip the warps on the lease sticks, in the order I intend to thread them. I may invest in some Angel Wings, which I saw on Verna's and Charleen's blogs, but for now, you can see I tie the lease sticks to the front beam.

I run the warps through the reed, from right to left, beginning with the rightmost warp:

warps4

I continue with each warp, threading it across as needed:

warps6

Until all the warps are threaded:

warps5

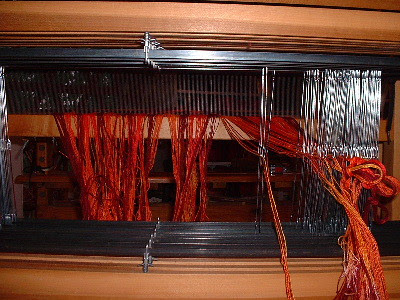

This is the view from the back of the loom, as I sit and thread the heddles:

threading

Next, I tie onto the back apron bar, and wind the warp onto the back beam:

windingwarp

I use corrugated cardboard for a warp separator. This is cut to the size of my back beam, and winds on as I go. This roll is about 15 years old, it just does not wear out. Here it is, all wound on. This 8 yard warp took 20 minutes to wind on.

warp

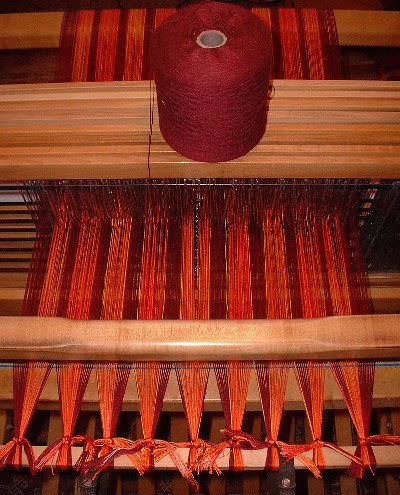

Here, the warp is tied on to the front apron bar, ready to weave a header, to spread the warps. You can see the cone of 10/2 unmercerized cotton which will be the weft:

tying on

I've woven a few shots here:

weaving1

That's it. Plain weave, sett at 20 epi, cotton, painted warp. It may be curtains for our bedroom, or handtowels (or both). Now, I just have to weave it off!
